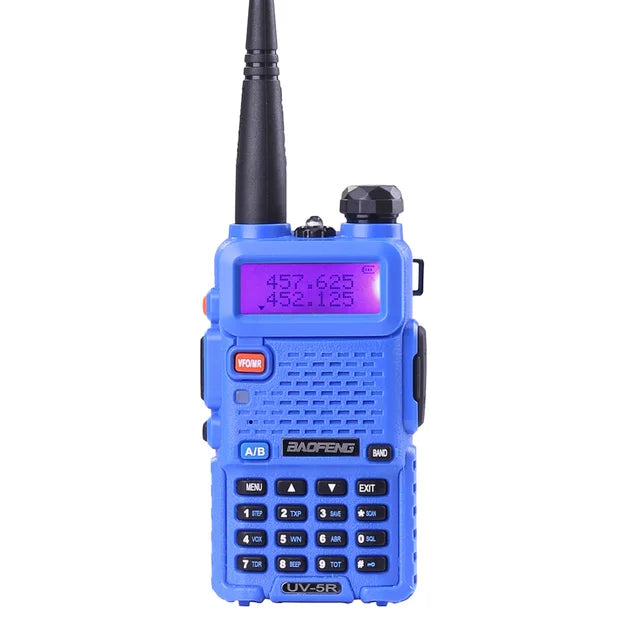

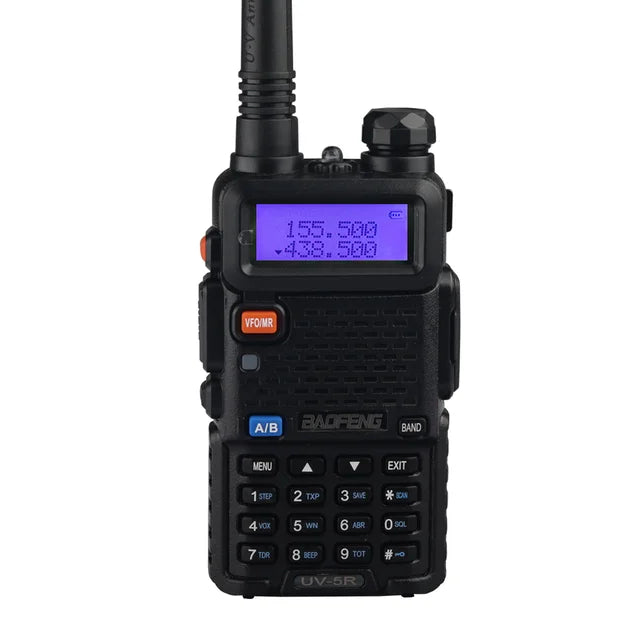

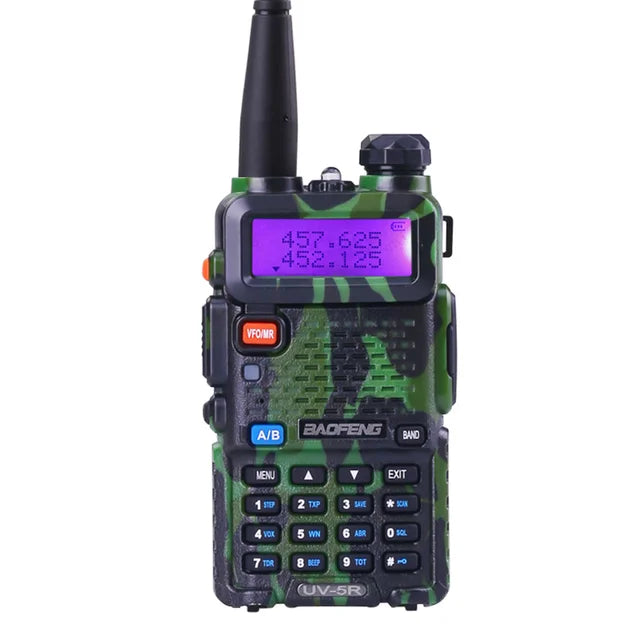

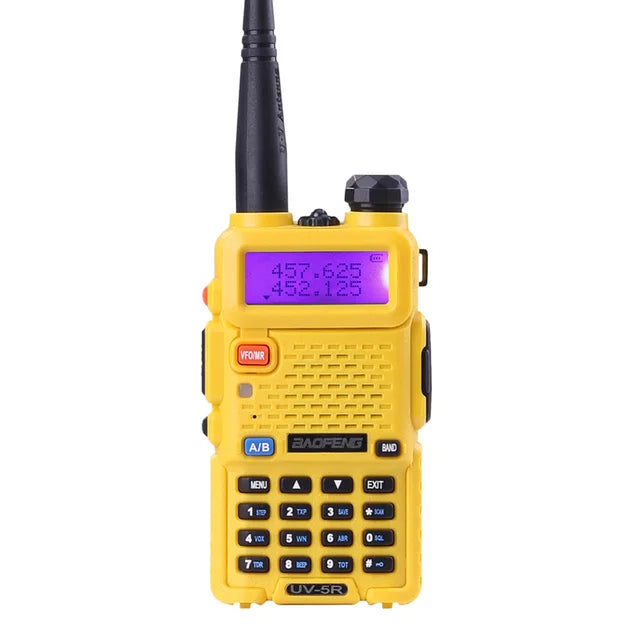

BaoFeng UV-5R Walkie Talkie Professional CB Radio Baofeng UV5R Transceiver 128CH 5W VHF&UHF Handheld UV 5R For Hunting Radio
BaoFeng UV-5R Walkie Talkie Professional CB Radio Baofeng UV5R Transceiver 128CH 5W VHF&UHF Handheld UV 5R For Hunting Radio
Couldn't load pickup availability
Including all
PACKAGE of unit
1 x UV-5R (VHF136-174 & UHF 400-520Mhz)
1 x 7.4V 1800mah Li-ion Battery Pack
1 x dual band Antenna
1 x Belt Clip
1 X ear hook earphone
1 x ENG Manual
1 x Desktop Charger ( 100V ~ 240V US/EU/UK/AU plug )
Technical Parameters
| GENERAL | |
|
Frequency range | 65-108Mhz(only for FM) VHF:136-174Mhz(Rx/Tx) UHF:400-520(Rx/Tx) |
| Memory channels | Up to 128 channels |
| Frequency stability | 2.5ppm |
| Frequency step | 2.5kHz/5kHz/6.25kHz/10kHz/12.5kHz/25kHz |
|
| |
| Supply voltage | Rechargeable Lithium-Ion mAh7.4V/1800 |
|
| |
| Mode of operation | Simplex or semi-duplex |
| Duty cycle | 03/03/54 min.(Rx/Tx/Standby) |
| Dimensions | 58mm*110mm*32mm |
| Weight | 130g(approximate) |
| TRANSMITTER | |
| RF power | 4W/1W |
| Type of modulation | FM |
|
| |
| Spurious emissions | <-60dB |
| RECEIVER | |
| Receiver sensitivity | 0.2μV(at 12dB SINAD) |
| Intermodulation | 60dB |
| Audio output | 1000mW |
| Adjacent channel selectivity | 65/60dB |
| Note: All specification shown are subject to change without notice | |
Features/Functions
| Dual-band handheld transceiver with display function menu on the display "LED" |
| Commercial FM radio receiver (65MHz-108MHz) |
| Built-in LED flashlight |
| DTMF encoded |
| Built-in RX CTCSS/DCS scan |
| Function VOX |
| Alarm function |
| Broadband/narrowband selectable |
| Function beep on the keyboard |
| Dual Watch/dual Reception |
| Crossband reception/transmission |
| Function OFFSET |
| Tone end of transmission |
| Battery saving function SAVE |
| Programmable by PC |
| Built-in key lock |
